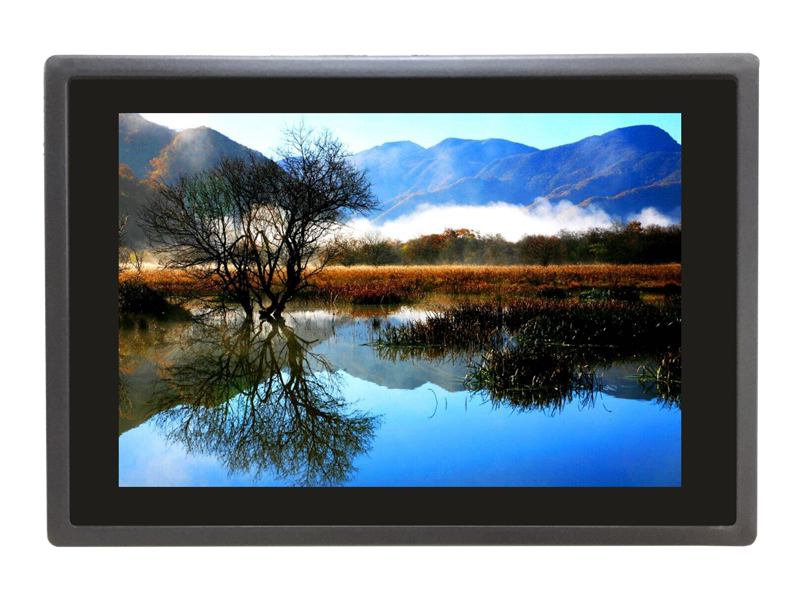

Description
Features：
* Nimble touch, better light transmittance.
* anti-scratch, thinest industrial HMI.
* anti-shedding structure, simple to be installed
* The mainboard is with spray coating treatment,
* Nimble touch, better light transmittance.
* anti-scratch, thinest industrial HMI.
* anti-shedding structure, simple to be installed
* The mainboard is with spray coating treatment,
and adapt to harsh industrial environment.
| Hardware： | |
| Display | 7″ wide view |
| Resolution:(W×H) | 1024×600 |
| Colors | 24-bit Colors |
| Brightness | 400cd/m² |
| Backlight | LED |
| Backlight Life | 50000 Hours |
| Touch Panel | Glass+Glass Projective multi-touch capacitive HMI |
| CPU | 32 Bit Cortex A9 |
| Memory | 8GB EMMC+2GB DDR3 |
| RTC | Built in |
| Ethernet | 10M/100M Ethernet |
| USB Port | USB Host2.0*2 |
| SD Card | Supporting |
| Operating System | Android |
| Electrical Specifications： | |
| Input Power | DC 24V,Input Range:DC 12V～32V |
| Power Consumption | <7W |
| Power Down Allowed | < 5mS |
| CE & RoHS | EN61000-6-2:2005, EN61000-6-4:2007, RoHS, CE Surge Immunity:±1KV；EFT:±2KV; ESD:4KV, Air:8KV |
| Environment Specifications： | |
| Operating Temperature | -10～50°C |
| Storage Temperature | -20～65°C |
| Operating Humidity | 10～90%RH(No condensation) |
| Vibration Endurance | 10～25Hz(X/Y/Z 2G/30Min) |
| Cooling | Natural cooling |
| Performance： | |
| Others： | |
| Degree of Protection | IP65 |
| Shell Material | ABS |
| Panel Cutout(W×H) | 184.5mmx122.1mm |
| Dimension | 198.5mm x 137.6mm x37.1mm |
| Weight | About 570g |
